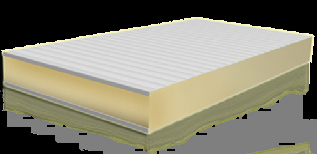

PUF Panels

At MDD Engineering we offer a wide range of PUF Insulated Panels. These panels can be used for a number of Industrial applications such as:

    At MDD Engineering we offer a wide range of PUF Insulated Panels. These panels can be used for a number of Industrial applications such as:
    • Roofing                                                                                                  • Wall Cladding
    • Partitions                                                                                              • Walk On Ceilings
    • Prefabricated Shelters                                                                        • Accommodation Shelters
    • Information Kiosks                                                                              • Health Centres
    • Community Shelters                                                                           • Communication Shelters
    • Cold Storages                                                                                       • Pack Houses
    • CA chambers                                                                                        • Banana Ripening Chambers
    • Freezer Rooms                                                                                     • High Altitude Accommodation Shelters for Sub Zero Temperature Areas


    Key Technical Specification

  • Density: 45 kg/m3 to 50 kg/m3 for optimum thermal insulation, light weight.
  • PUF properties: CFC free, Self – extinguishing fire retardant type conforming to IS 12436/1988.
  • Surface material : Pre-Painted Galvanized Iron- PPGI, Galvanized Plated Skin Passed - GPSP, Stainless Steel ANSI 304-
            SS 304; 0.5 mm - 1.5 mm. High Pressure Laminate (HPL)
  • Surface Thickness: : PPGI: 0.5 mm - 1 mm; GI/SS 304: 0.8mm – 1.6mm ; HPL: 1 mm – 6 mm
  • PUF panel thickness: 30 mm to 200 mm.
  • Panel Jointing: Joined together by tongue & groove arrangement interlocked using cam lock system
